Cummins 4×4 Conversions

1

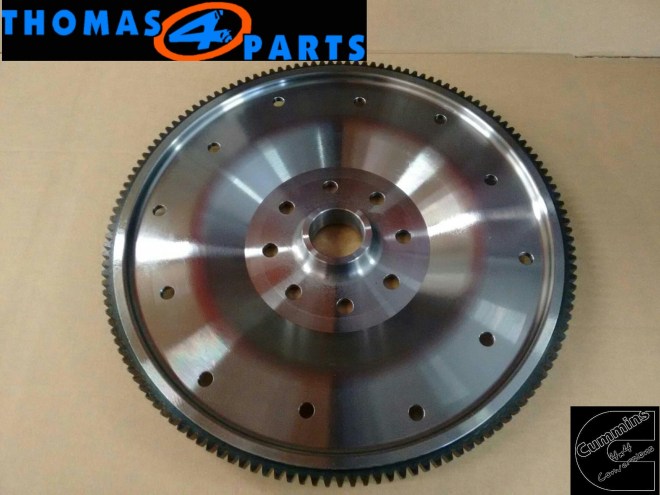

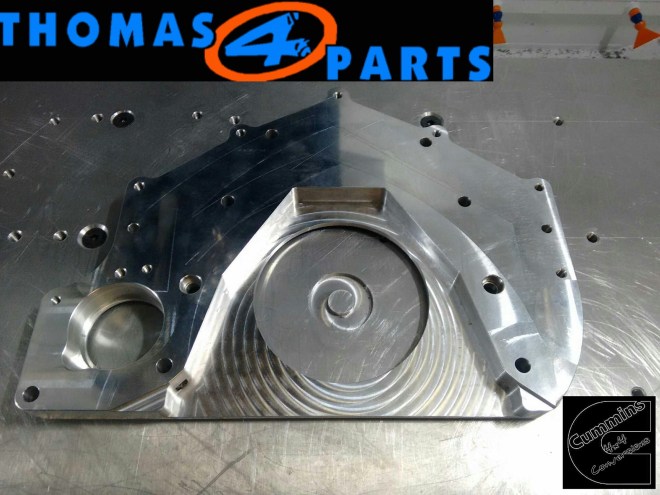

Nissan Patrol GQ GU Cummins Adapter Kits were $3400 Now $3100 incl GST plus postage. With ARP Flywheel Bolts, were $3530 Now $3230 incl GST plus postage. 4BT 6BT Cummins 5.9 12Valve, 5.9 24Valve VP44, 5.9 Common Rail and 6.7 Common Rail with front timing case, conversion kit, adapter, billet flywheel, clutch kit, spigot bearing, bolts for adapter to block and transmission clutch housing to adapter. Engine sits on straight in engine bay. Can remove sump with with Adapter plate in situ. Suits TD, TB42-45 and ZD. FS5R50A and B transmissions in GQ GU Patrols. ( ZD30 TB42 and TB45 transmission bellhousing needs the 3 starter motor threads drilled and tapped to suit TD42 starter motor mounting position. TD housing doesn’t require any modifing,transmission requires shifting back unless a 4BT. Kit uses a TD42 12volt or 24volt 3.2kw starter motor or standard starter, isn’t supplied with this kit Make on order with a 2 to 4 week turn over. Australian made.
2
Cummins 4bt and 6bt 12v, 24v to gm auto’s including 4L80E 6L80E automatic adapter kit with a starter motor $2250 inc gst plus postage Comes with adapter plate, flexplate (no flexplate bolts included) , adapter plate bolts mounting bolts and transmission to adapter plate, length of flange on transmission is required. This kit uses a 2008 – 2010 6.4L powerstoke starter motor with no modifications required. Lead time is 2 to 4 weeks on payment. Other thing you may need to look at is the a transfer case adapter. The following link is for 4L80E Marks Adapters https://www.marks4wd.com/catalogsearch/result/?cat=0&q=4l80e

3

4
CUMMINS 4BT 6BT 12Valve – 24valve ISB 5.9 4.5ISD Alternator and A/C compressor relocation bracket. Price $1400 inc gst plus postage. Alternator ac compressor relocation bracket, comes with relocation bracket, tensioner bracket, idler bracket, tensioner, idler’s, themostat house (only 4bt and 6Bt 12valve engines), 40mm top and bottom radiator coolant connections suction has heat connection, belt and required bolts. Suits gen1 and gen2 dodge ram fan hubs. Fan belt isn’t supplied if it doesn’t have a Gen1 or Gen 2 fan hub, alternator and A/C compressor isn’t supplied in this kit. Key points can run a 4inch intake pipe between the relocation bracket and rocker covers for the 12valve, Universal ac compressor and 150amp alternator and pad mounted. Suits gen1 and gen 2 dodge ram fan hub. 2 different universal a/c compressors and 7 different rear hose connection covers can be selected. A/C compressor and alternator not included. Australian Made. Made to order, once Payment has been confirmed there is 2 to 4 week turn around before postage.

5

6

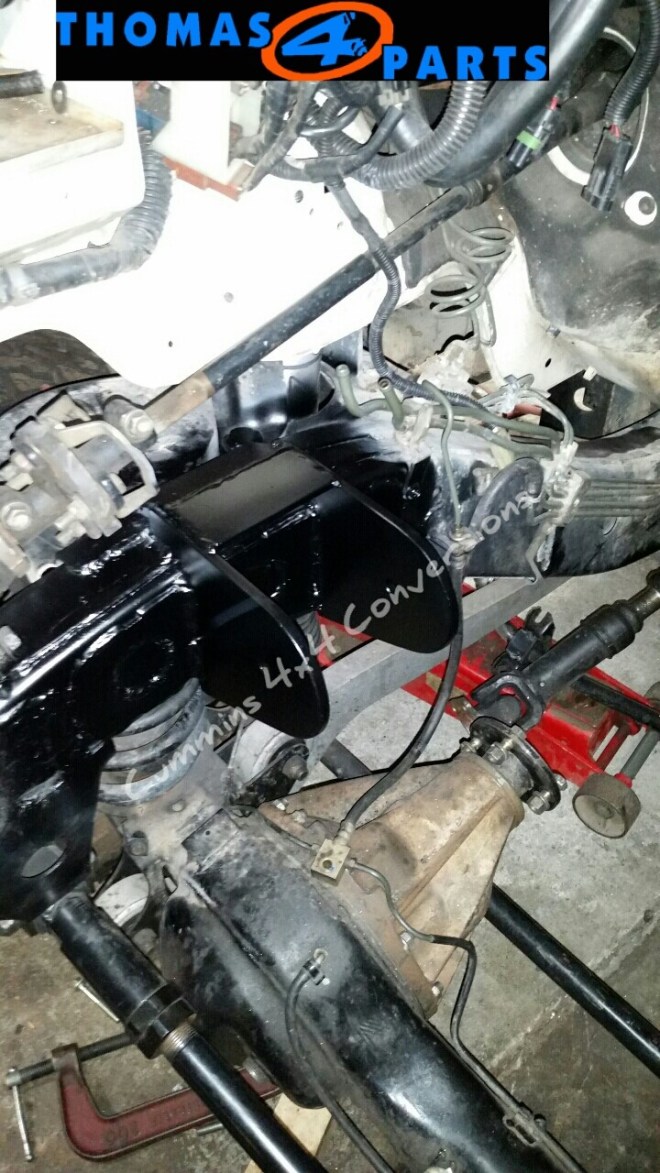

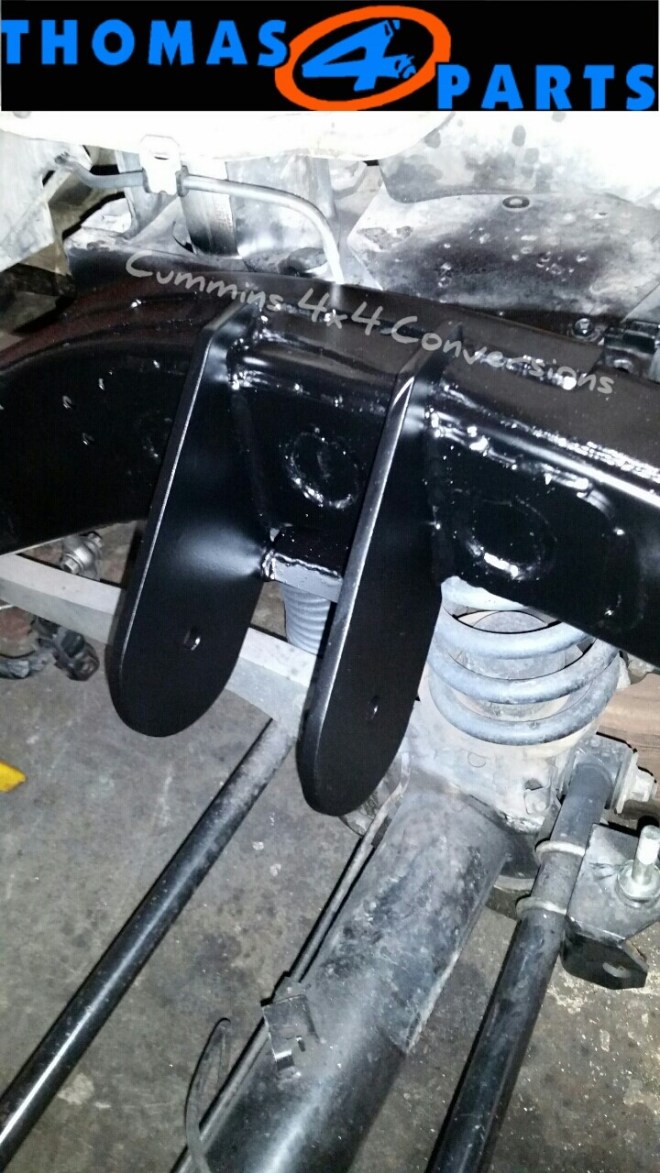

6bt 12v 24v vp44 Cummins to Nissan Patrol Gq and Gu engine mount kit to work with dodge ram vac and powersteering pump $850 plus postage. Comes with to both block mounts with new bushes(unpainted), chassis reinforcement plate (unpainted), chassis plates to mounts and 2 upper and lower reinforcement plates all stitch welded in. Vehicle requires if 2inch body lift if it is a Gq Engine need to be 10mm off the firewall and 10mm off the balancer to front crossmemberas a minimum , these measurements are to check before purchasing the chassis plates are to be cut to height and width and diff clearances will need to checked, possible sump modification depending on bump stop position and suspension lift.

789
